Home ProductsButterfly Valve JIS F7480

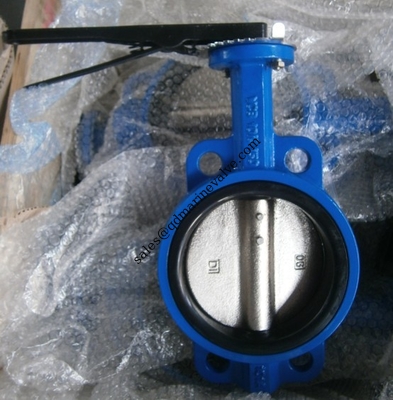

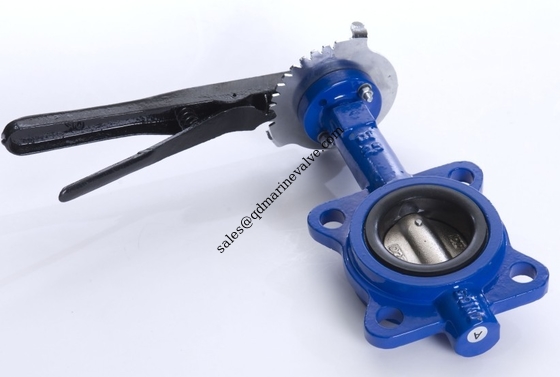

JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350

Good quality JIS Marine Cast Iron Valve for sales
Good quality JIS Marine Cast Iron Valve for sales
I'm Online Chat Now

JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350

China JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350 supplier
JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350 supplier JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350 supplier

Large Image :  JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350

Product Details:

Place of Origin: Qingdao
Brand Name: CXD &OEM
Certification: BV/ABS/CCS/GL/DNV
Model Number: JIS F7480

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: exprot packing
Delivery Time: 10days
Payment Terms: T/T ,LC/
Supply Ability: 5000PCS/Month
Contact Now
Detailed Product Description

JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type

Model No.: JIS F7480
Power: Manual
Pressure: Low Pressure
Material: Casting
Media: Water /oil /gas
Place of Origin: qingdao, China
Standard or Nonstandard: Standard
Structure: Butterfly
Temperature of Media: Normal Temperature

Butterfly valve
Body:cast iron
Seat:NBR

JIS F7480 Butterfly Valve

Product Introduction

Butterfly valve PN:10K DN:50A-350A
marine valve,good material,excellent capablity,exquisite process and strong
antierosisn.suitable for media water ,gas and oil
Material for valve parts:
Body:cast iron
Seat:NBR
Disc:Nodular iron
Stem:ss304
Hand operated

If you are interested in our products and want to know more, please contact with us. We will reply as soon as possible.

JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350

Overall&Structure Dimensions

ampensand
KGF/CM)
module
module
face to face
pitch
z-h
hole
G
HAND MANUAL
5K/10K/16k
752201
DN50
43
105
4*15
M12
4.0
752202
DN65
46
130
4*15
M12
4.5
752203
DN80
46
145
4*19
M16
5.5
752204
DN100
52
165
8*19
M16
8.0
752205
DN125
56
200
8*19
M16
13.0
752206
DN150
56
230
8*19
M16
15.5
752207
DN200
60
280
8*23
M20
23.0



JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350



JIS F7480 Marine Cast iron Butterfly Valve wafer lug Type Size:DN40-DN350
