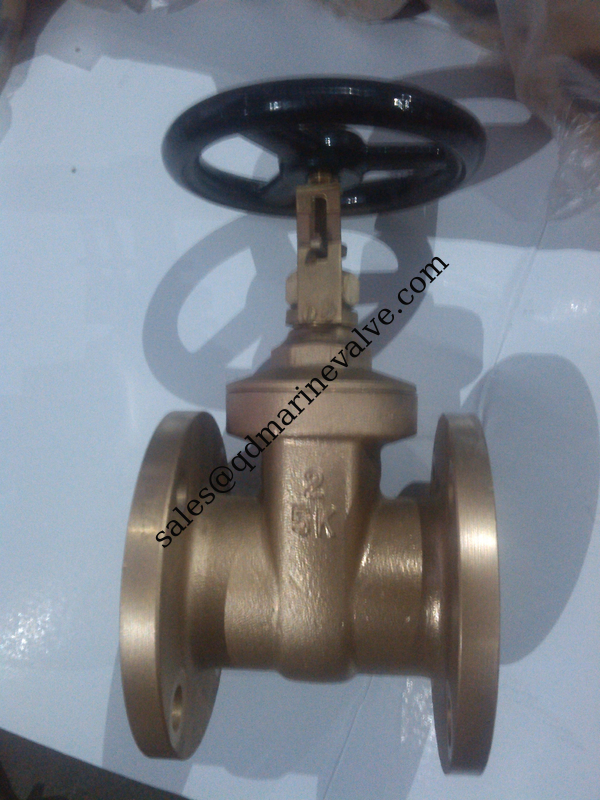

Marine Valve Bronze Gate Valve JIS B2026 10K
Screwed bonnet,
Non-rising stem
Solid wedge disc integral seat
flanged ends
Marine Valve Bronze Gate Valve JIS B2026 10K
Screwed bonnet,
Non-rising stem
Solid wedge disc integral seat
flanged ends
Working Pressure | 10kg/cm2 | |
Test Pressure | Body | 24kg/cm2 |
Seat | 15kg/cm2 | |
|
|
|
Materials |
|
|
Parts | Material | |
Body | Bronze | |
Bonnet | Bronze | |
Stem | Bronze rod | |
Disc | Bronze | |
Pacing nut | Brass | |
Gland | Brass rod | |
Gland packing | PTFE | |
Handwheel | Cast iron | |
Data for 5K
SIZE | FACE TO FACE | FLANGE | HEIGHT | ||
DIA | PCD | BOLT HOLE | |||
15 | 60 | 80 | 60 | 4-12 | 76 |
20 | 70 | 85 | 65 | 4-12 | 93 |
25 | 80 | 95 | 75 | 4-12 | 104 |
32 | 100 | 115 | 90 | 4-15 | 130 |
40 | 100 | 120 | 95 | 4-15 | 130 |
50 | 120 | 130 | 105 | 4-15 | 175 |
65 | 140 | 155 | 130 | 4-19 | 183 |
80 | 160 | 180 | 145 | 4-19 | 205 |
100 | 175 | 200 | 165 | 8-19 | 250 |
Data for 10K
SIZE | FACE TO FACE | FLANGE | HEIGHT | ||
DIA | PCD | BOLT HOLE | |||
15 | 80 | 95 | 70 | 4-15 | 104 |
20 | 80 | 100 | 75 | 4-15 | 104 |
25 | 80 | 125 | 90 | 4-19 | 104 |
32 | 100 | 135 | 100 | 4-19 | 134 |
40 | 100 | 140 | 105 | 4-19 | 134 |
50 | 115 | 155 | 120 | 4-19 | 154 |
65 | 127 | 175 | 140 | 4-19 | 204 |
